Description
FEATURES
- Custom-designed servo motor designed by our engineers and the first direct drive motor optimised for racing simulator applications.
- Outrunner-type motor achieves outstanding peak torque of 25Nm, matching the torque output in most real race cars using power steering.
- Motor acceleration and speed remains at the highest level, even with heavy steering wheels.
- Ultra-low torque ripple ensures minimal mechanical distractions and the same smooth experience as in a belt driven wheel.
- Wireless QR technology: Wireless transfer of data (infra-red) and power (inductive coupling) between the motor and quick release means no external cables between wheel base and steering wheel, and no need for batteries inside the wheel.
- Rotation: 2520 degrees (electronically limited, adjustable).
- Integrated 2.7” 256x64 resolution OLED display.
- Podium wheel bases include advanced telemetry features in the OLED display for real-time motor and force feedback data such as power output, FFB clipping and more. (Motor/FFB telemetry pages are for short-term analysis purposes and not for continuous use in racing.)
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- Support for advanced dual clutch bite-point mode
- Integrated electronics within wheel base housing, no external control box required.
- The integrated electronics and highest quality components ensure ultra-low latency, providing immediate feedback from racing simulators.
- Fully certified with CE, FCC, C-Tick, ROHS and all other certificates required by law, ensuring that this product does not interfere with other electronic devices.
- Torque Key allows user to lock/unlock the DD2’s full performance.
- All existing and upcoming Fanatec peripherals fully supported. Choose from a growing selection of Fanatec steering wheels in many different styles and price/quality levels.
- Killswitch allows instant shut down of the DD2 in the event of an emergency. It also features a remote power button, and universal mounting points for ease of access.
- Firmware can be updated with new features
- Fast 1000 Hz USB update rate
- Allows connection of two external shifters (e.g. H-pattern and sequential) in parallel
- Mount for ClubSport Static Shifter Paddles and other optional accessories • Connection ports for peripheral devices: USB, Power, Pedals, Shifter 1, Shifter 2, Handbrake
- All-Aluminium housing
- Exchangeable brushed aluminium cover plates.
- Supports Fanatec 3-hole mounting pattern (bottom mounting) and side mounting. Hard mounting to a cockpit is highly recommended due the high amount of torque.
- Full Fanatec SDK support ensures game compatibility out of the box for all major racing games across all platforms.
- Combines with FanaLab software for PC.
- Connect external devices to network for displaying telemetry data like speed, lap times, brake temperatures, tachometers and more.
- Support for major PC racing simulators
- Control your Upgraded Fanatec Tuning Menu settings and presets directly from the software.
- Save game-specific settings to PC software, which will be applied when the game is launched.
- New FFB tuning features, e.g. speed-sensitive dampening.
- Automotive grade Quick Release system with expandable rubber damper
- Standard 5 year warranty.
COMPATIBILITY
Platforms
- PC: This wheel base is compatible with PC in combination with all available Fanatec steering wheels.
- Xbox®: This wheel base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed steering wheel.
- PlayStation®: This product is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.
Peripherals
- All Fanatec Podium Steering Wheels
- All Fanatec ClubSport Steering Wheels
- All Fanatec CSL Steering Wheels (QR1 Wheel-Side required)
- All Fanatec Pedals
- All Fanatec Shifters
- RennSport Cockpit V2 (sold after Q4 2017)
- ClubSport Table Clamp V2
SPECIAL NOTES
- Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
PACKAGING DETAILS
- Dimensions (L x W x H)51cm x 26cm x 28cm
- Weight13kg
- Volume weight7.42kg
WHAT'S INCLUDED
- Podium Wheel Base DD2
- Kill Switch with Remote Power Button
- Torque Key
- Quick guide
- Power supply
- USB cable
TECHNICAL SPECIFICATIONS
- PlatformPC, XBox One Ready
- Hardmount3-hole pattern, 5-hole pattern from bottom, Sidemount 2-hole pattern on each side
- USB update rate1000Hz
- Degrees of rotationUnlimited / Adjustable

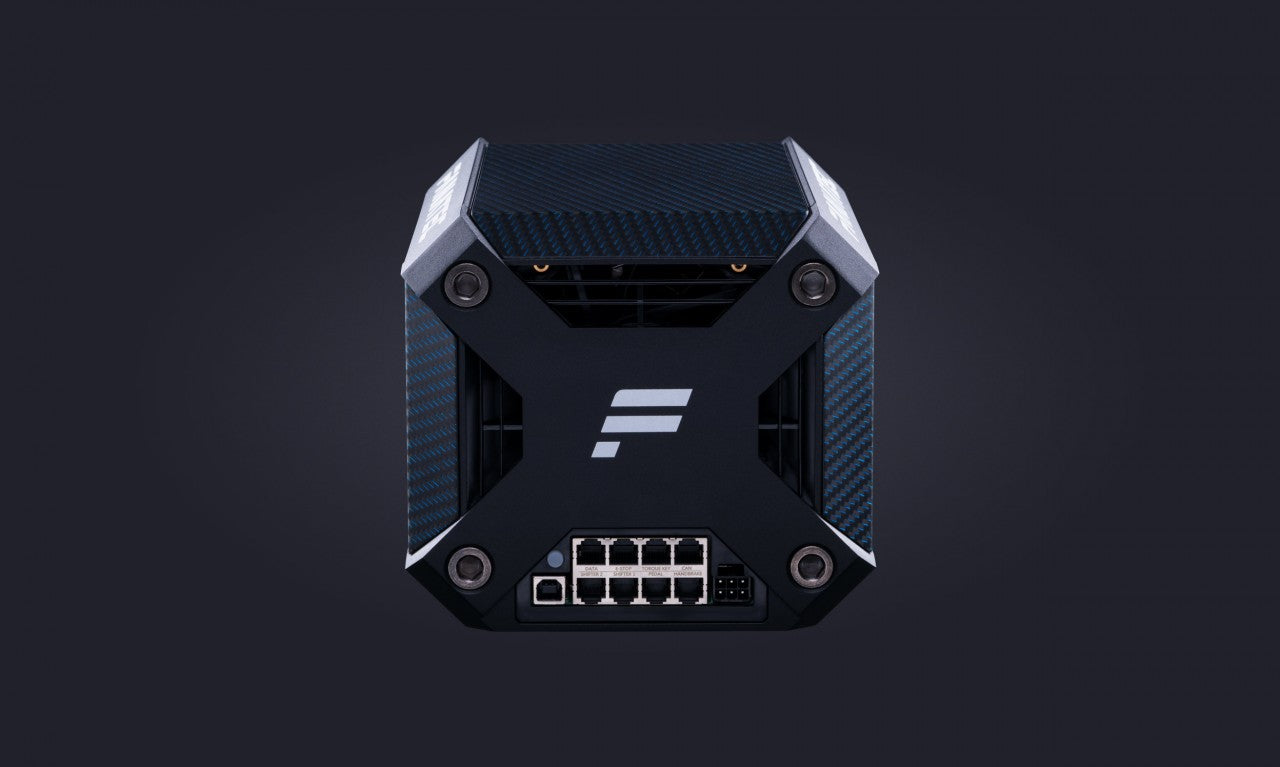

- Connection portsCAN, Data, Emergency Stop, Handbrake, Pedals, Shifter 1, Shifter 2, Torque Key
- Display2.7" 256x64 OLED
- Table ClampOptional
- Kill SwitchIncluded
- Cover platesCarbon Fibre
- Display modesClipping, FFB Telemetry, Wheel Base telemetry
- TorqueUp to 25Nm
- Tuning Menu through steering wheelYes
- Rev Lights on Wheel BaseNo
- Adjustable springYes
- Adjustable ABS vibrationYes
- Adjustable brake forceYes
- Adjustable drift modeYes
- Adjustable FF strengthYes
- Adjustable sensitivityYes
- Adjustable shockYes
- Quick ReleaseYes
- Cooling systemSingle fan
- Mode ButtonNo
- Force Feedback drive systemDirect Drive
